Noise barrier Næstved/ Ringsted Femern
Facts
- Project name: Noise barrier Næstved/ Ringsted Femern
- Contract: Subcontractor
- Client: MJ Eriksson for Rail Net Danmark
- Implementation: 2015
Project description

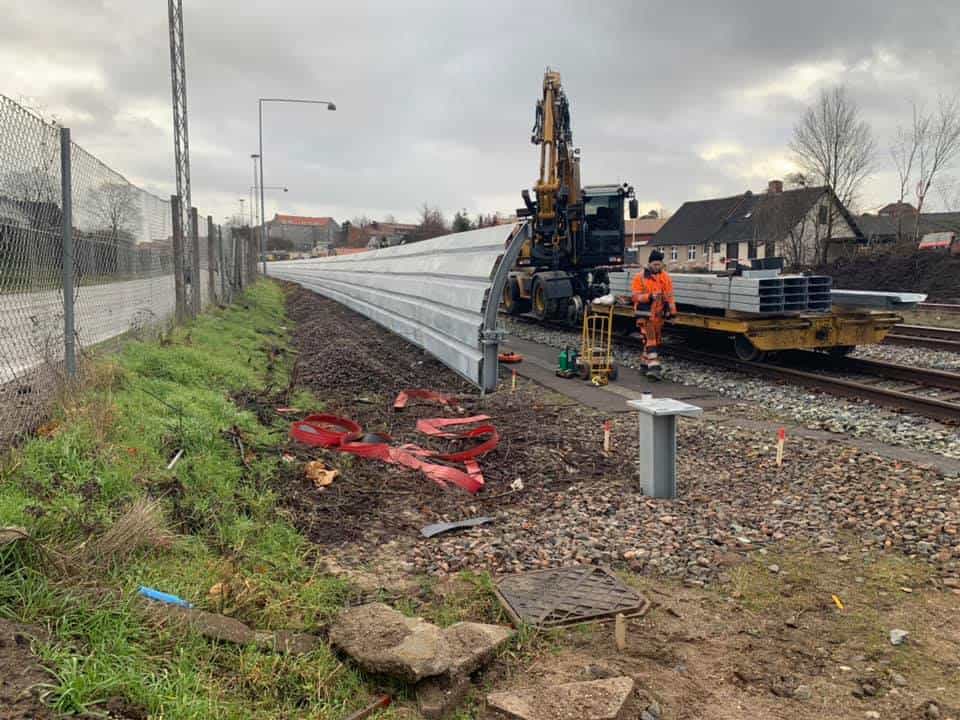

One of Denmark´s biggest railway projects today is the Ringsted-Femern connection, which will connect Germany and Denmark through a tunnel under the sea. In order to protect local residents from noise of bypassing trains, GroundPlug® was given the task of providing foundations for noise barriers along the rails. As subcontractor to MJ Eriksson, we delivered foundations for a 16km long and and 2-5m high noise barrier made of aluminium.
Installation

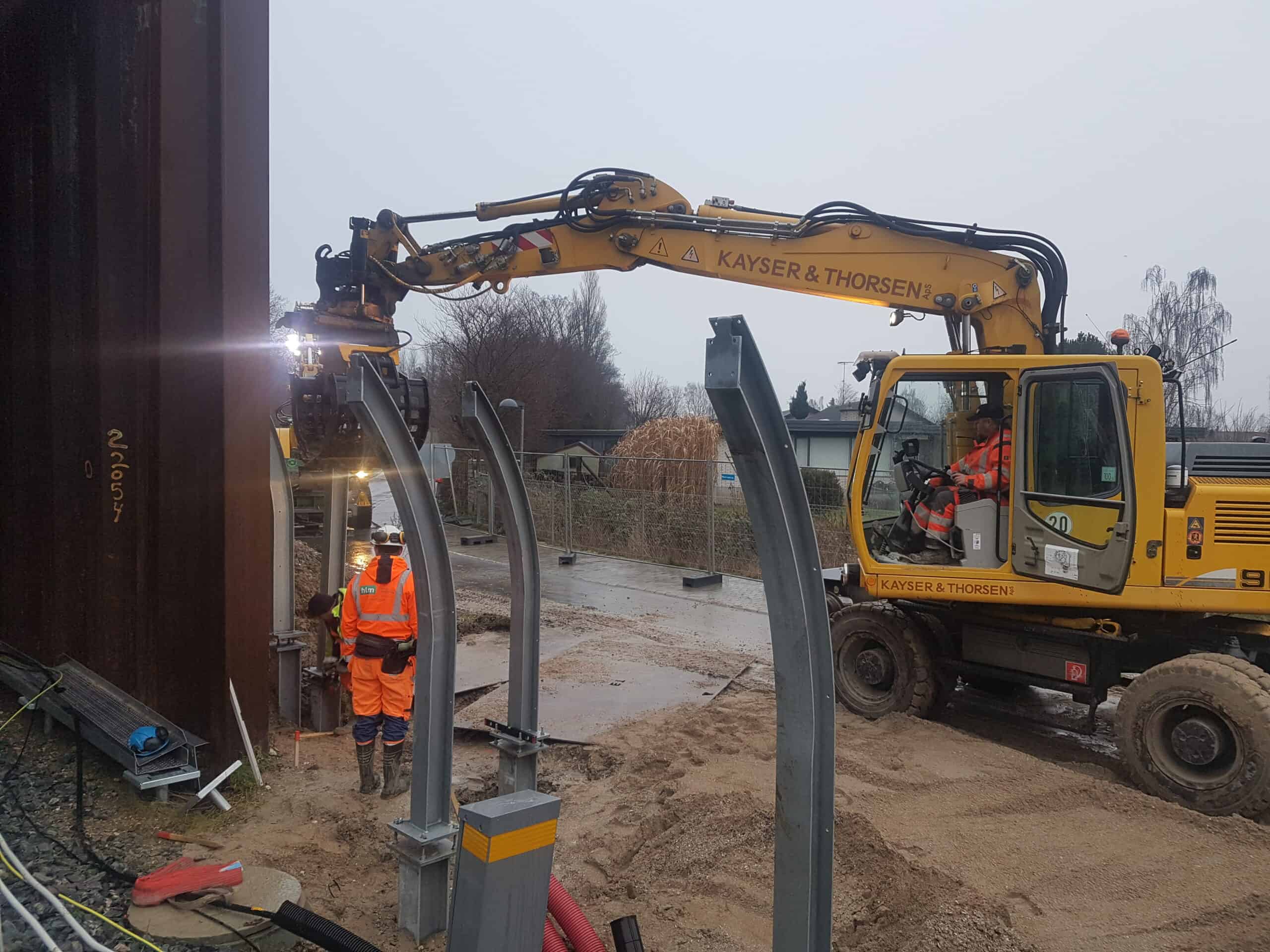

The noise barriers along the Ringsted-Femern line are built on H-profiles, which are designed by the Danish Rail Net company. H-profiles with slot holes do provide very few adjustment options and therefore place significantly greater demands on precision during installation. In contrary, GroundPlug® HE foundations are adjusted easily with a flexible bolt connection, which makes the installation process significantly faster and easier.
