Steel Foundations – HE
GroundPlug® HE
GroundPlug® HE
Foundation for large horizontal loads

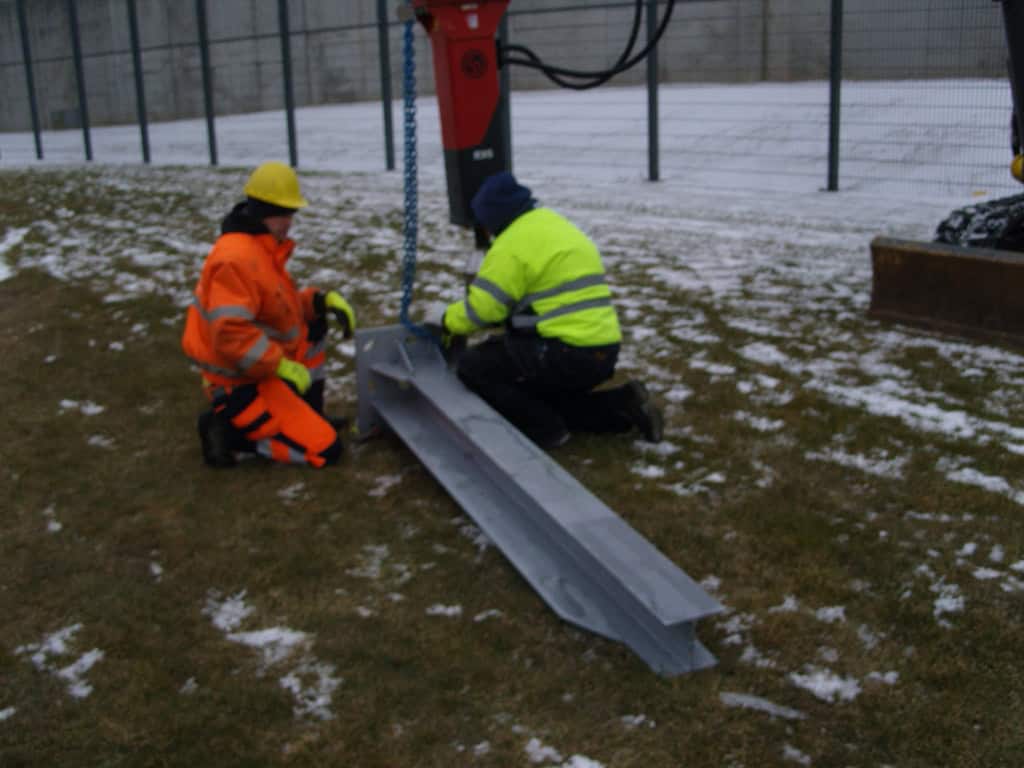

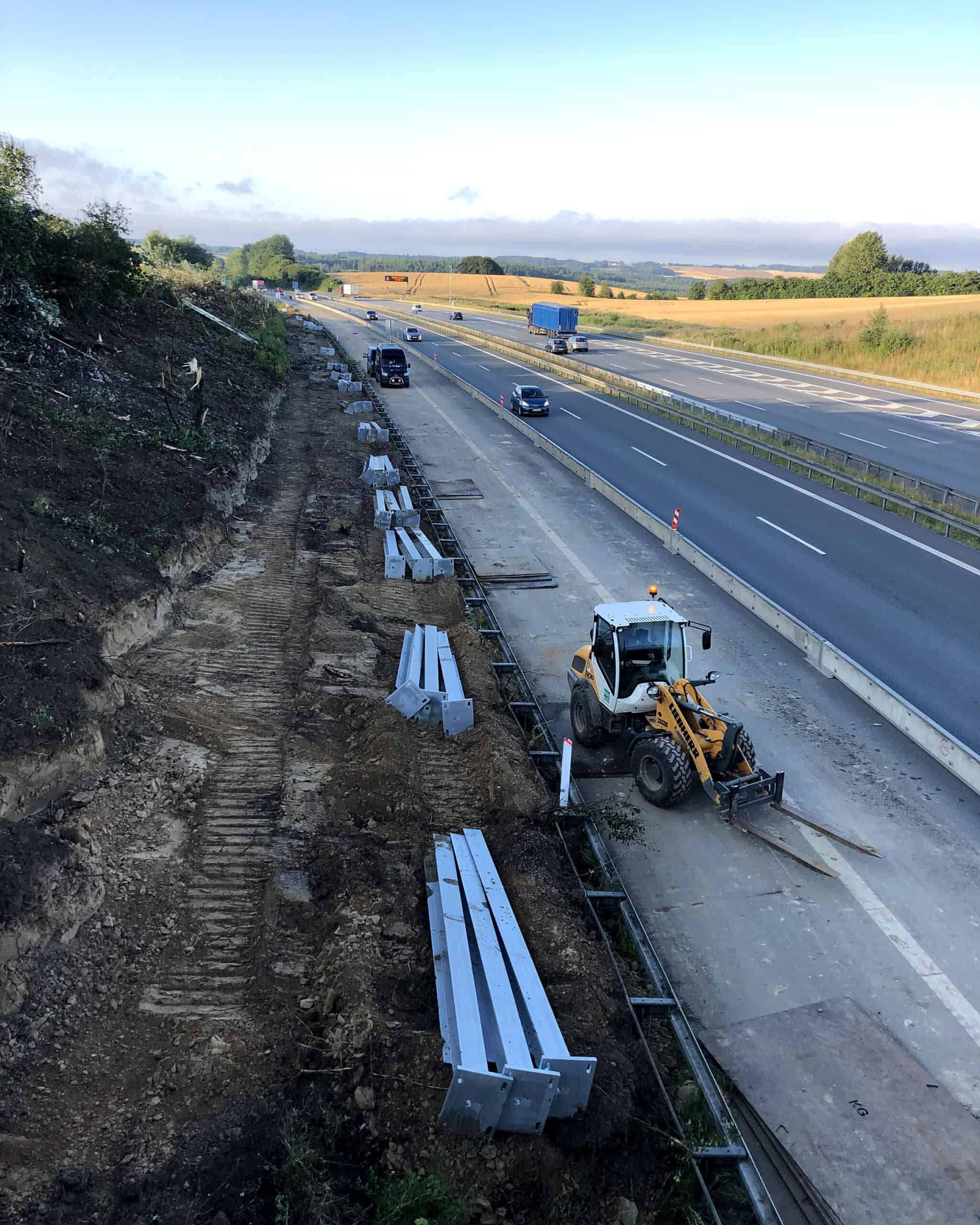

- A steel beam in HE profile (typically HEB/HEA) with extra wings on the sides, which is driven into the ground with a standard excavator.

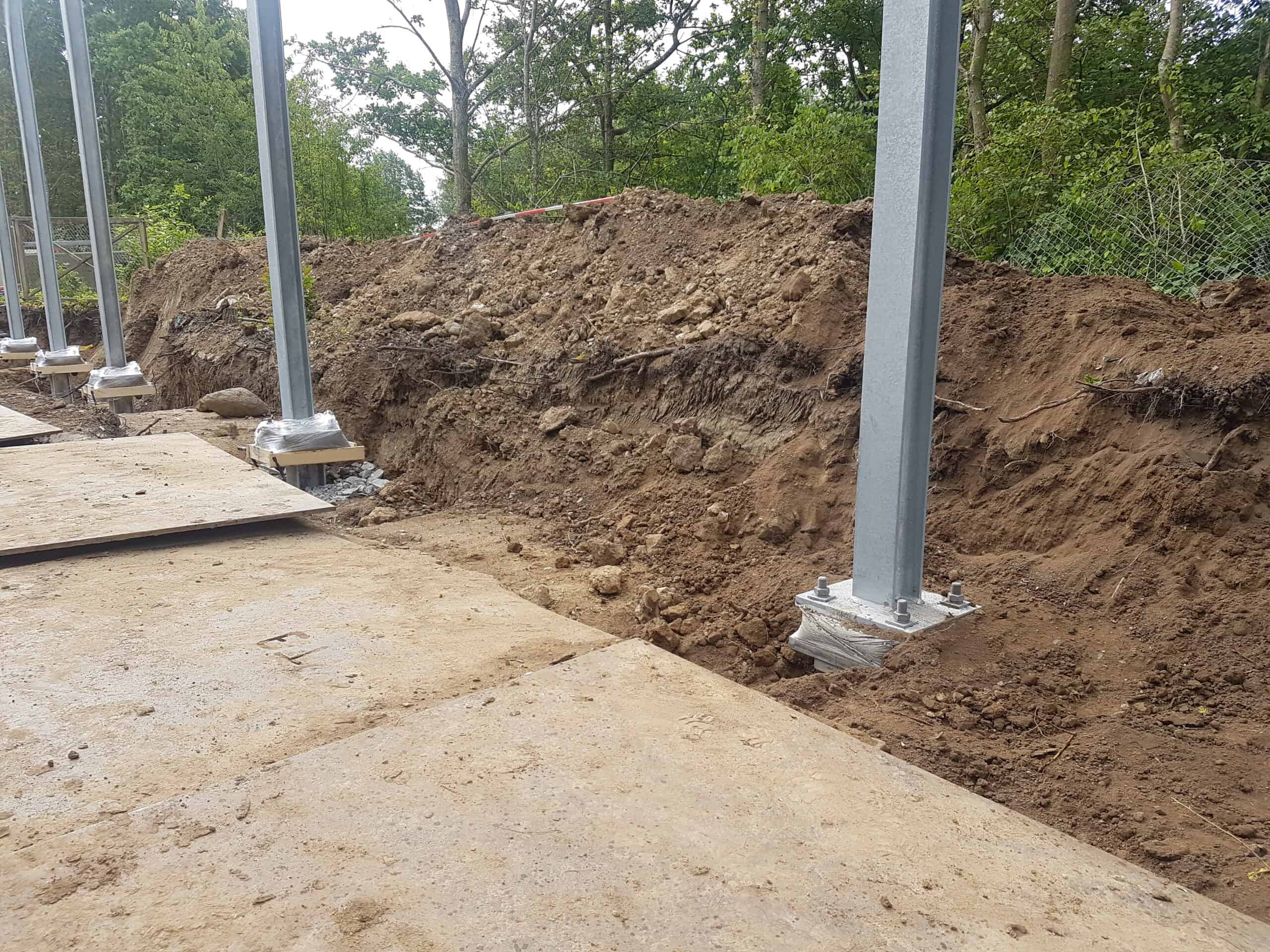

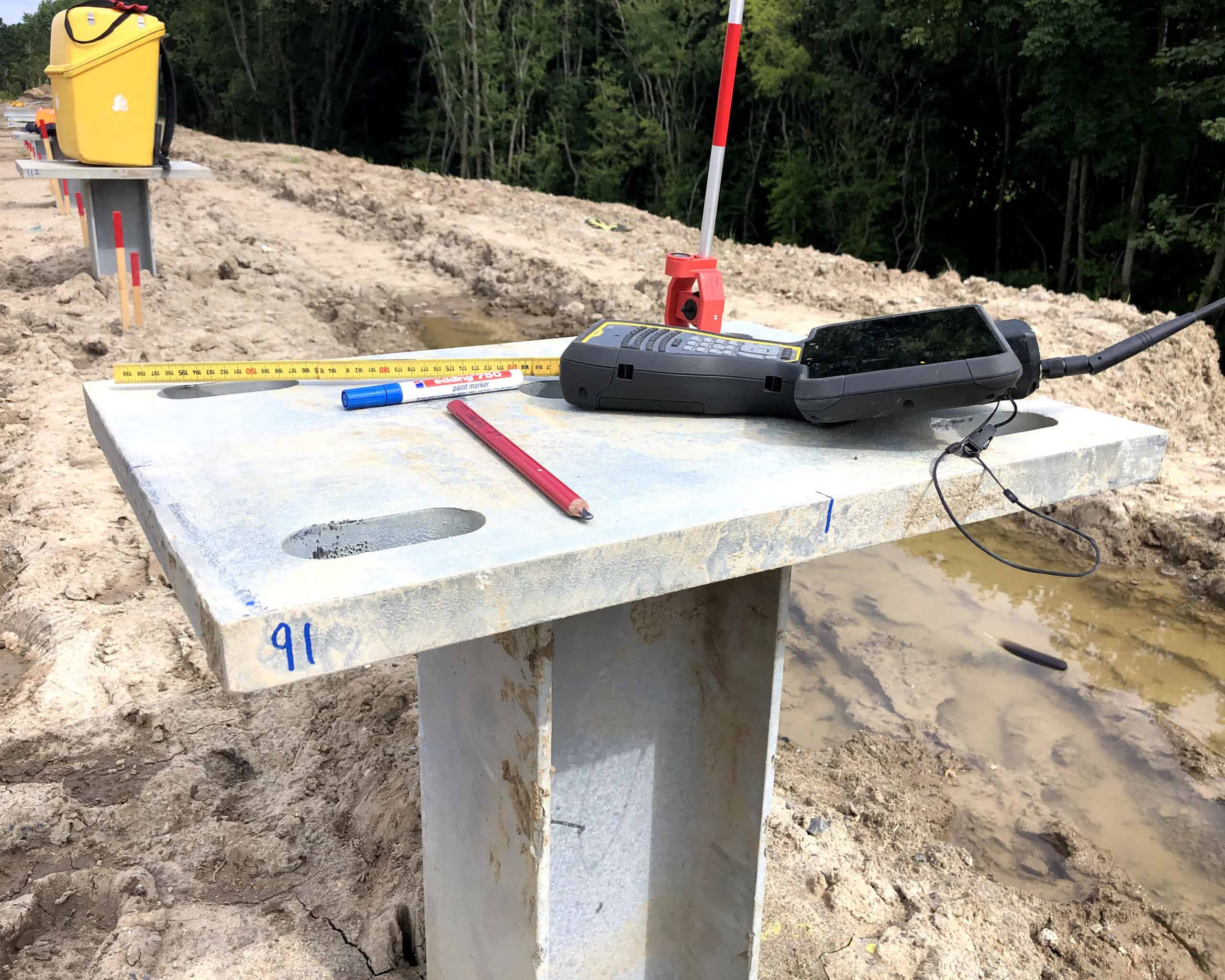

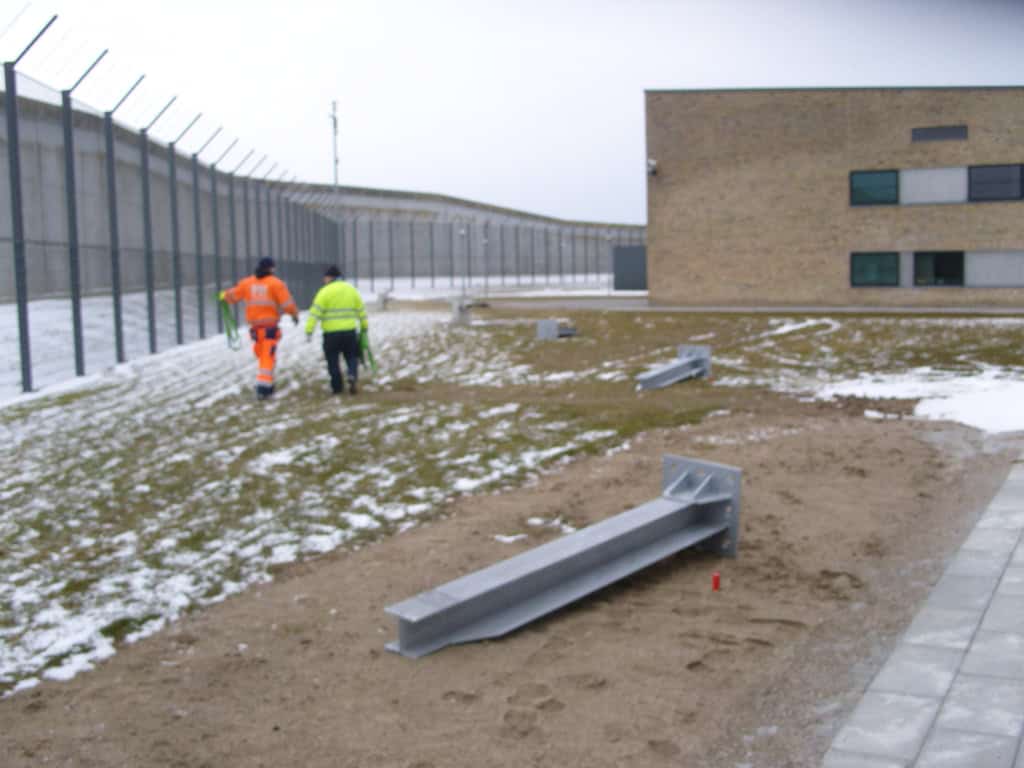

- Unique bolt group and base plate with high adjustment for mounting the column.

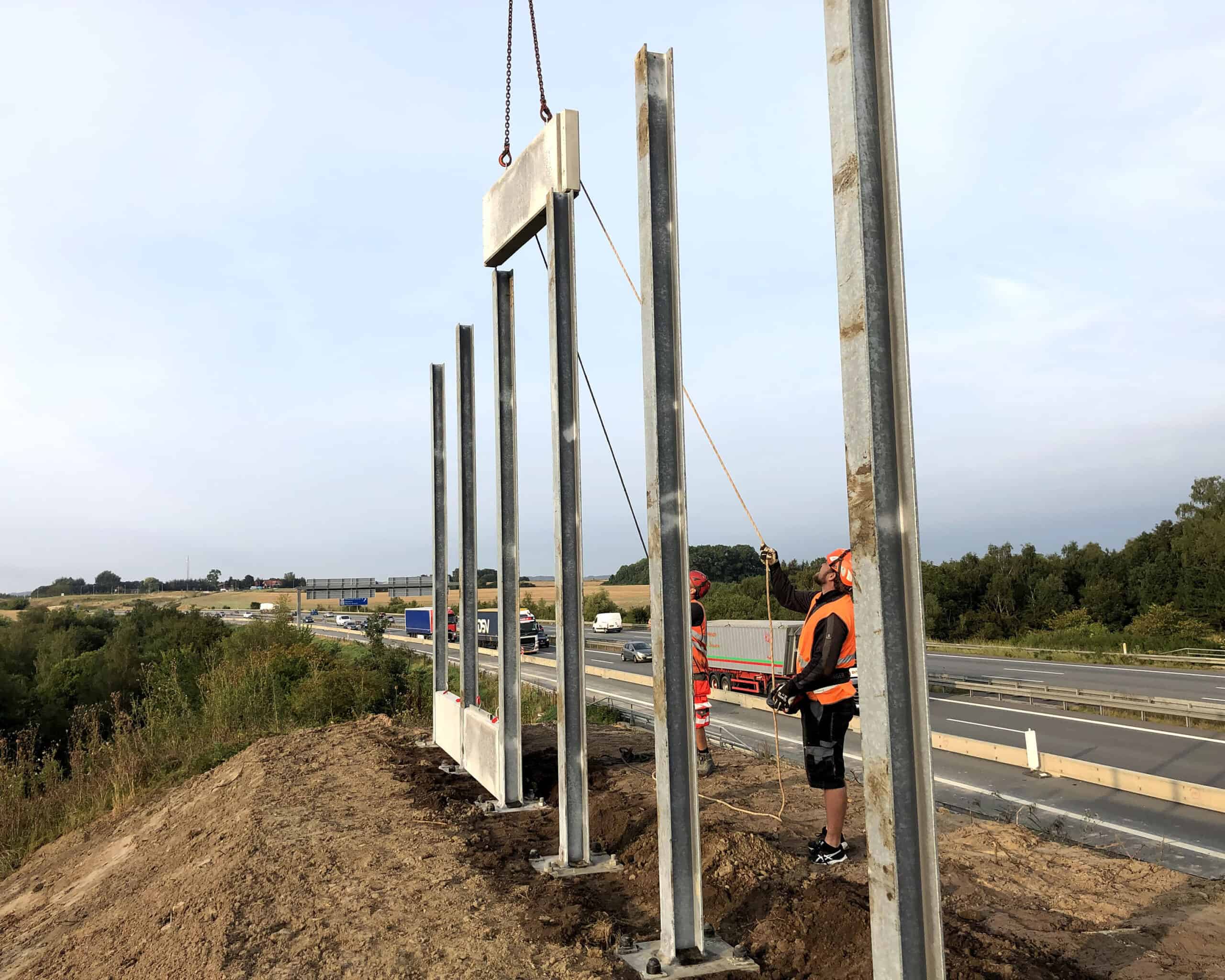

- The columns for e.g. the noise barrier are mounted with threaded rods on the adjustable base plate.

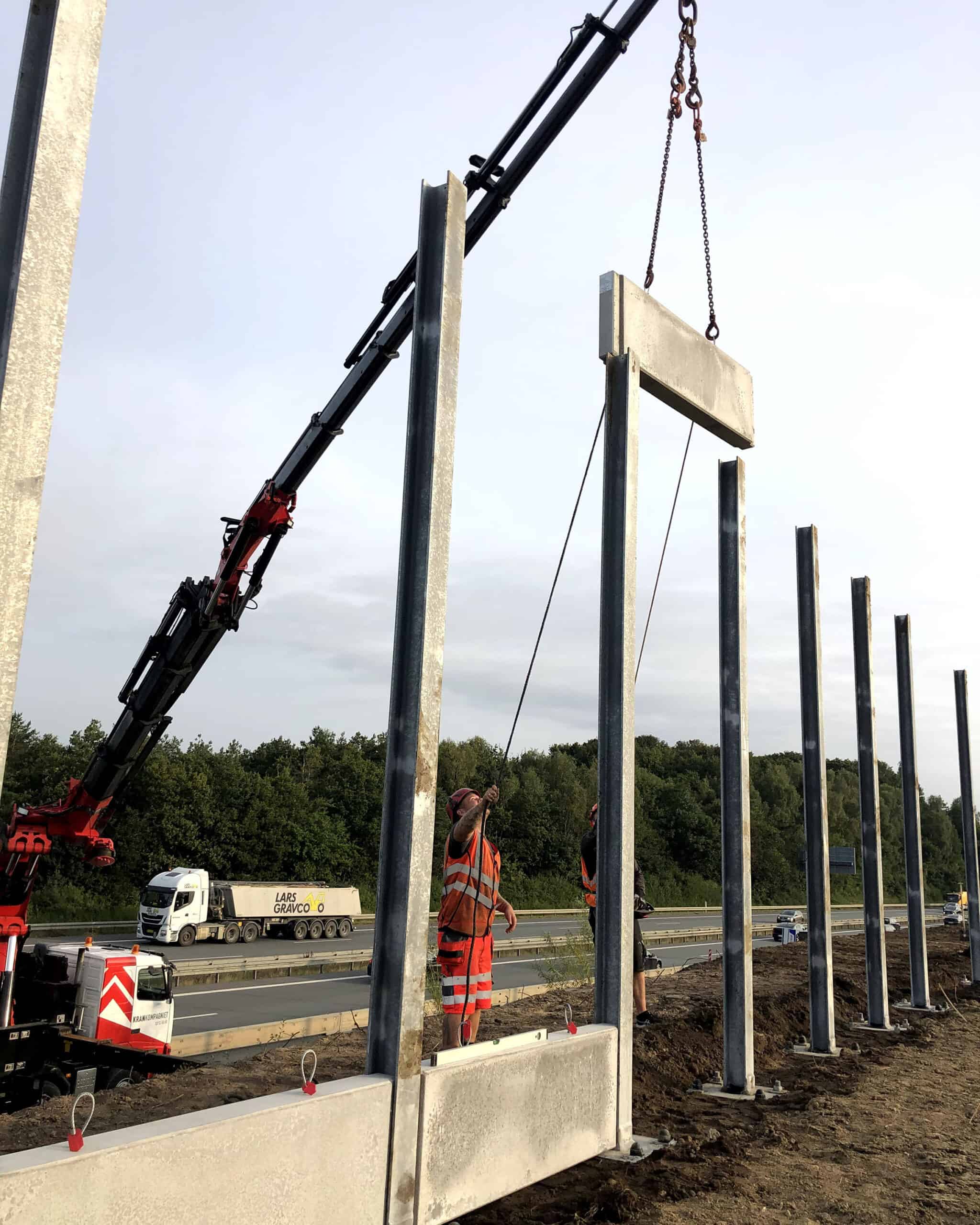

- Any panels can then be mounted.
TECHNICAL DATA
| Series | HE |
|---|---|
| Widths | 120 - 300 mm |
| Lengths | 2000 - 9000 mm |
| Material | S235 Steel |
| Treatment | Galvanised VFZ iht. ISO EN 1461 |
| Capacity | 23 - 370 kN |
* Load capacities depend on installation depth, soil conditions and project type. Contact us for an initial assessment of your project.
Common GroundPlug® HE Applications

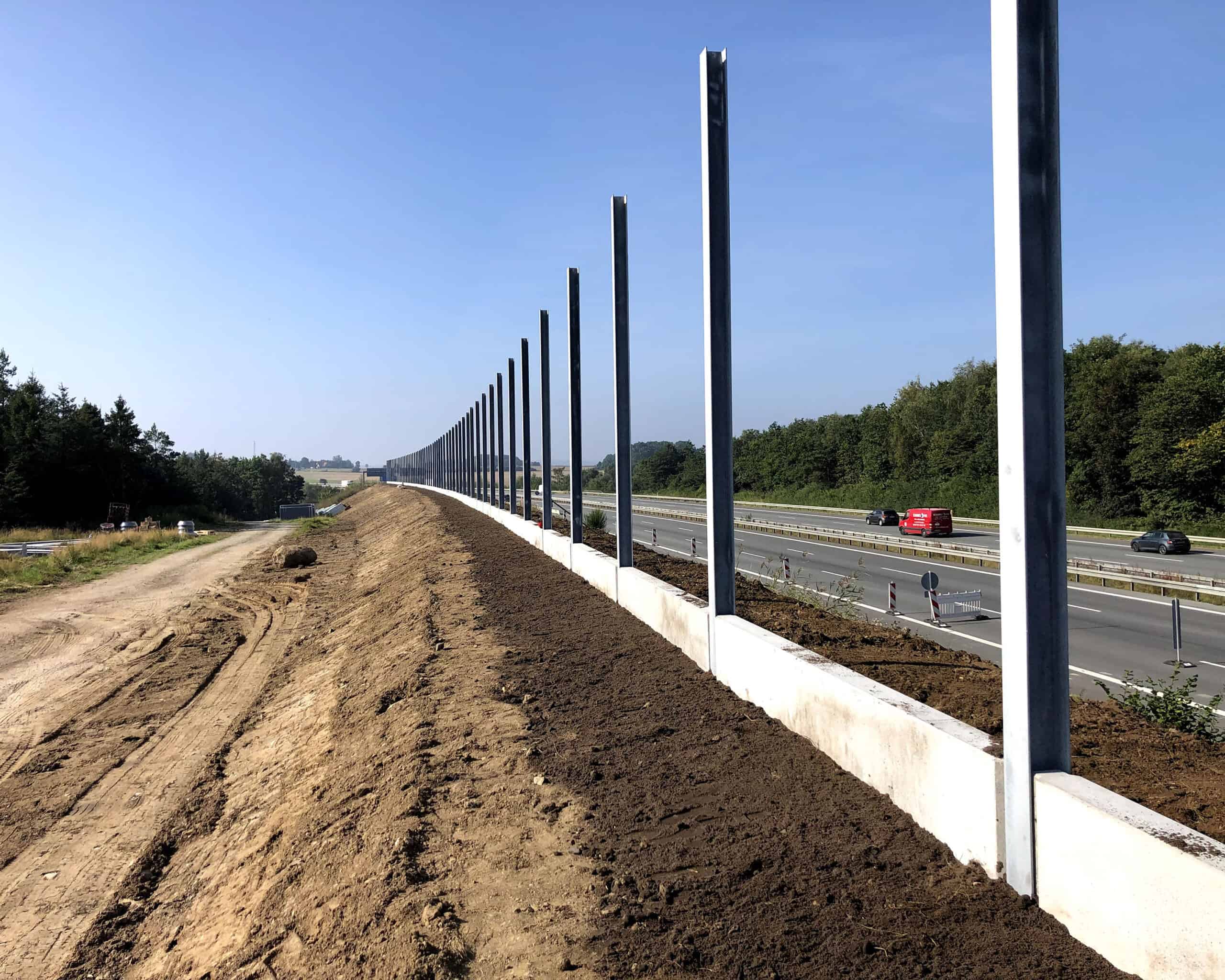

Noise Barriers
STANDARD PRODUCTS
| GroundPlug® HE | |
|---|---|
| HEA/B120 L:2000-3000 | HEA/B220 L:3000-9000 |
| HEA/B140 L:2000-3000 | HEA/B240 L:3000-9000 |
| HEA/B160 L:2000-6000 | HEA/B260 L:3000-9000 |
| HEA/B180 L:3000-8000 | HEA/B280 L:3000-9000 |
| HEA/B200 L:3000-9000 | HEA/B300 L:3000-9000 |
Clever Foundation
Flexible Capacity
Quick Installation
Effective Adjustment
INSTALLATION
GROUNDPLUG® CAN INSTALL UP TO 50 FOUNDATIONS PER DAY.
DOCUMENTATION
ALL STEEL FOUNDATIONS FROM GROUNDPLUG ARE BASED ON CALCULATIONS IN ACCORDANCE WITH:
EN 1990, EN 1991-1-1, EN 1991-1-3, EN 1991-1-4,EN 1991-2, EN 1993-1-1, EN 1993-1-3, EN, 1993-1-5,EN 1993-1-8, EN 1993-1-9, EN 1993-5, EN 1997-1,EN 1997-2, EN 1794-1.
ANALYTICAL CALCULATIONS AND PRACTICAL TESTS:
- ASTM Standard Designation (ASTMD1143, ASTM D3689, ASTM D3966) of pressure, tension and horizontal load on single screw foundations. Performed by Applied Foundation Testing (AFT), USA, and CLTTHOMPSON INC, USA.
- NIRAS capacity and soil calculations, verified by LPILE by Ensoft Inc.
Our engineering team can provide design documentation for any structure based on European Design Standards (Eurocodes 0-9) and national annexes. Calculations can also be based on applicable American and Australian Design Standards.
Interested in our qualifications?
With our extensive knowledge of steel structures, we are happy to advise you on your upcoming construction project.
Please feel free to contact us – whether you need advice or just want to hear more about our expertise and business areas.
